Experimental Mercedes front wing hints at final F1 update push

The fight between Mercedes and Red Bull in Formula 1 has been as much about car development this year as it has been about wheel-to-wheel battles on track.

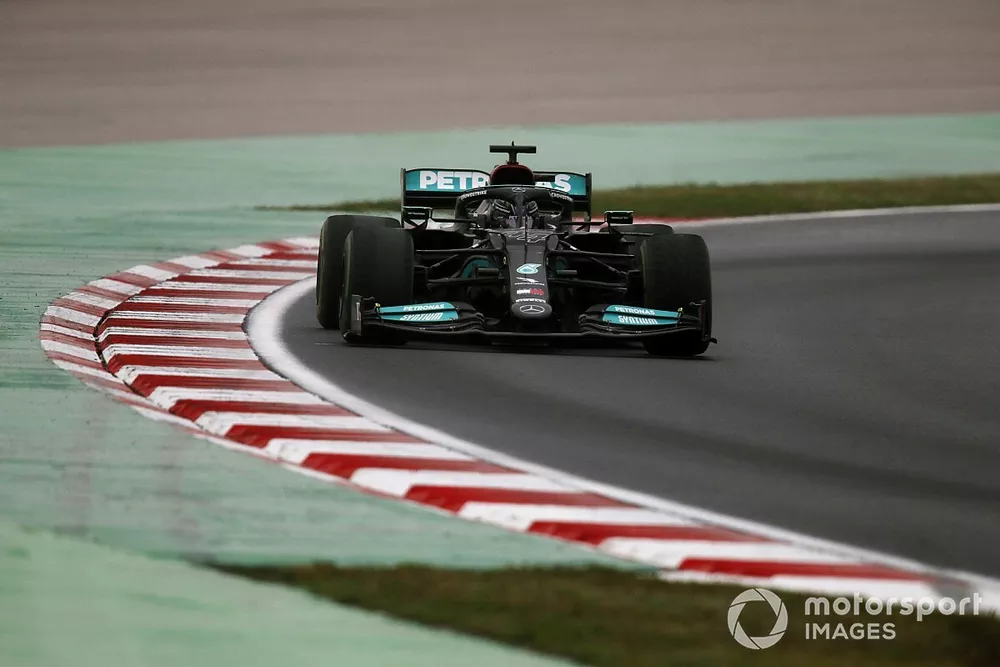

Lewis Hamilton, Mercedes W12

Lewis Hamilton, Mercedes W12

Charles Coates / Motorsport Images

Giorgio Piola's F1 technical analysis

Giorgio Piola is the preeminent Formula 1 technical journalist. Born in Genoa, Italy, Giorgio has covered the F1 World Championship since 1969, producing thousands of illustrations that have been reproduced in the world’s most prestigious motor racing publications.

Early on in the season, Red Bull appeared to be throwing more weight behind aerodynamic upgrades in the opening half of the season than its rival.

It was delivering smaller optimisation packages at almost every race, while Mercedes stuck to its usual development path of bring more occasional substantial upgrades.

Red Bull RB16 front wing detail

Red Bull RB16 front wing detail

Photo by: Giorgio Piola

This represented another layer within the tactical battle, not only from a development standpoint but from a psychological point of view too, with Lewis Hamilton making reference to his rival’s unrelenting progress on numerous occasions.

Nonetheless, Mercedes stood firm and it appeared that the package of new parts that arrived at the British Grand Prix would be its last major push for 2021.

However, eagle-eyed observers have noticed that maybe Mercedes is not settled completely on its 2021 car, with the team having tested a revised front wing at the last two grand prix.

It’s not an entirely new front wing design concept, nor would you expect it to be given the challenges posed by the incoming all-new car design that the teams are working on for next season.

But it does see the team move towards a direction seen elsewhere, with the inner and outer section of the upper wing elements revised in order to alter their ratio of importance between the two sections.

Mercedes W12 front wing comparison

Mercedes W12 front wing comparison

Photo by: Giorgio Piola

The new design (lower drawing) features a more loaded outer section (left red arrow), including a Gurney flap, whereas the trailing edge of the wing section has been trimmed near the adjuster.

This is important when we consider set-up and will likely see the new specification used when Mercedes runs a lighter downforce configuration, given it takes away some of the available downforce, while also promoting more outwash from the static section of the wing. (The section of the wing that’s outboard of the adjuster remains immobile, even when the wing is adjusted).

The new specification was tested on Friday during the last two race weekends but has yet to be raced. However, it will undoubtedly feature again when the team arrives at the United States Grand Prix and may be something that the team wants to race for some of the lower downforce events coming up.

Wing comparison

Mercedes W12 rear wing comparison
Mercedes W12 rear wing comparison

The Mercedes drivers had to contemplate a different style of race come Sunday, as a consequence of Hamilton’s grid penalty for taking a new ICE into his power unit pool.

And, as a result, it ran with different aerodynamic configurations, to help with the task at hand. Contrary to its usual choices, Bottas’ W12 was fitted with a lower downforce rear wing, with the front wing set to match that set-up, whilst Hamilton’s W12 featured a higher downforce arrangement.

The larger upper flap size utilised on Hamilton’s car is offset by a much larger central V groove and a deeper taper on the extremities of the flap, reducing some of the drag that would otherwise be generated by the wing.

Red Bull also evaluated taking a different aerodynamic configuration for its two drivers, with Sergio Perez tasked with testing a lower downforce version on Friday.

The rear wing used by the Mexican was still a spoon-shaped rear wing design but featured less wing within the allowable box region and the more benign endplate design. It did, however, have a Gurney flap on the trailing edge of the upper flap to help balance the car.

Having put both options through their paces on Friday, the team made the decision to have both drivers on the higher downforce arrangement for qualifying and the race, which was probably a welcome relief given the weather that followed.

Sergio Perez, Red Bull Racing RB16B

Sergio Perez, Red Bull Racing RB16B

Photo by: Charles Coates / Motorsport Images

Red Bull runs a novel solution when it comes to its cooling outlets beside the driver, with the outlet formed behind the headrest.

The rest of the field have either an aperture that is formed further back as the leg of the halo trails into the bodywork, or they have an interchangeable panel with louvres in it.

Each of these solutions are used in order to mitigate the aerodynamic impact that the hot air exiting in that region has on the general flow stream, with careful consideration made on the power unit's requirements too.

Not for the first time, Red Bull opted to use the outlet on one side of the car, further mitigating the aerodynamic impact, with the left-hand side opened up in Turkey.

Sergio Perez, Red Bull Racing RB16B, on the grid

Sergio Perez, Red Bull Racing RB16B, on the grid

Photo by: Mark Sutton / Motorsport Images

McLaren and Ferrari are also locked in a battle of their own, as just 7.5 points separates them in the hunt for third place in the constructors’ championship.

McLaren’s recent 1-2 and overall form in the last few races had seemingly pulled them a little clear, but Ferrari's power unit upgrade will undoubtedly make the SF21 a more serious prospect as we enter the final stages of the season.

Ferrari also had to prepare its cars differently in order that its drivers could maximise their performance, with Sainz starting from the back, due to his power unit penalties, whilst it was expected that Leclerc would start much further forward.

Ferrari SF21 rear wing end plate detail

Ferrari SF21 rear wing end plate detail

Photo by: Giorgio Piola

In a similar fashion to Mercedes, it opted to put a higher downforce configuration on the car starting further down the field, as Carlos Sainz Jr’s SF21 was fitted with a more conventional higher downforce rear wing.

Meanwhile, Leclerc’s car had the lower downforce spoon-shaped rear wing attached, as the team looked to make the car more potent for the straights and sacrifice some performance in the corners.

Interestingly, both drivers had also tried the higher downforce arrangement, complete with the double element T-Wing during free practice on Friday.

McLaren MCL35M rear wing, Russian GP

McLaren MCL35M rear wing, Russian GP

Photo by: Giorgio Piola

McLaren opted to put both of its drivers on a higher downforce arrangement for the Turkish Grand Prix, having had success with it in Russia.

However, it quickly concluded it would run without the double T-Wing arrangement, removing it from both cars having tested with it during FP1.
