Alpine's F1 upheaval continues with major changes on track

Alpine keeps pushing for changes, both on and off the track

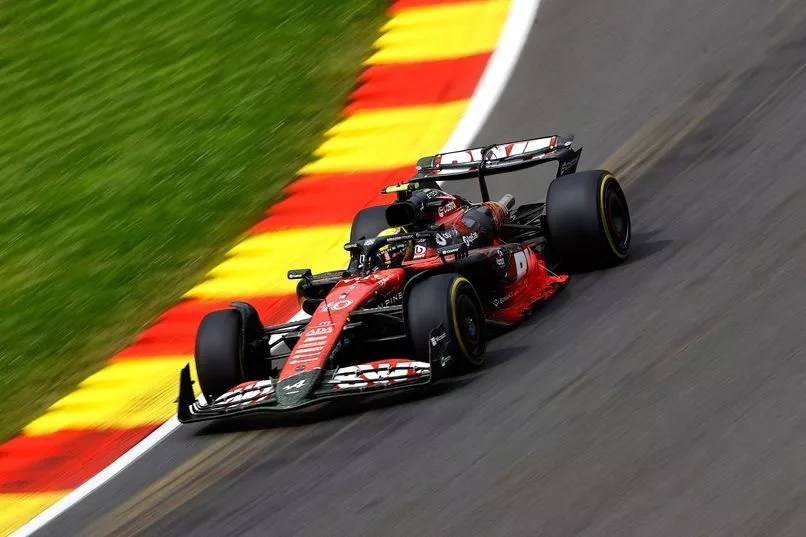

Pierre Gasly, Alpine A524

The major changes Alpine is going through off track have been mirrored with some extensive revisions on it, as some big updates appeared on its Formula 1 car in Belgium.

The new development package starts with the front wing, as the designers have rebalanced the flap profiles to improve the range that the team has at its disposal for the lower downforce venues.

This obviously needs to be matched at the rear of the car too, with it introducing a three-pronged attack here. It has brought a new beam wing, rear wing and rear brake duct arrangement on the A524.

Alpine A524 technical detail
Alpine A524 technical detail

The mainplane and upper flap section of the rear wing take up much less space within the allowable box region.

There is also a much flatter than normal leading edge to the mainplane, indicating how much downforce it is trading to also reduce drag compared to when it runs much more of a spoon-shaped design.

Alpine has also retained the cricket bat-shaped upper flap, with a much thicker profile across the entire span of the element than most. It also tapers inward in the central section to accommodate the DRS actuator and mechanism.

Notably, the convex shape applied towards the outer section of the flap is carried across to the tip section too, with a deeply rounded profile present on the upper and lower tips.

A new, single-element beam wing has also been fitted to the car, with the outermost tip section of the arrangement trimmed to help further reduce downforce and drag.

Meanwhile, the upwashing swage line on the lower outer face of the rear wing endplate has been deleted, along with the rear brake duct having been redesigned. This has been done for the flow structures in that region to all work more harmoniously, given the other changes.

Alpine A524 engine cover comparison

Alpine A524 engine cover comparison

Photo by: Uncredited

There are also changes to the sidepod and engine cover bodywork, as the team looks to improve both the aerodynamic and cooling efficiency of the A524. The team highlighted a note in the car presentation documents about the internal channelling of airflow to achieve these objectives.

The changes are most obvious when viewing the car from behind, with the rear cooling outlet now much more tightly pulled into the centreline.

This reduces the width of the bodywork, while raising the outlet away from the coke bottle region, which should help free up some space for the airflow being fed into that passage.

Close examination also shows that the tapering of the bodywork towards the narrower rear outlet exposes the louvred cooling panel more, whilst also giving more real estate to the channels within the downwash ramped portion of the sidepod bodywork.

Alpine A524 side

Alpine A524 side

Photo by: Giorgio Piola

There are also some changes to the topography of the sidepod's flank, with the underside of the waistline altered to better suit the flow characteristics the team is looking to achieve.

The team used some of its time during FP1 to establish whether these changes were performing as expected, as it doused Pierre Gasly's A524 in red flo-viz paint in order to gather visual confirmation of the new flow regime (see main image).
